Теплообменник HY024.1-01A
- Модель: HY024.1-01A
- Наличие: Есть в наличии
- 23312 грн.
TECHNICAL DATA
Item
| Oil flow [l/min] | Capacity [l] | Weight [kg] | Voltage [V] | Frequency [Hz] | Current absorption [A] | Power [W] | Ø Fan [mm] | Air flow [m3/h] | Noise level [dB(A)] | Rpm
|
| HY024.1-01A | 20-140 | 2 | 12 | 230 | 50/60 | 0,57 | 125 | 250 | 1280 | 68 |

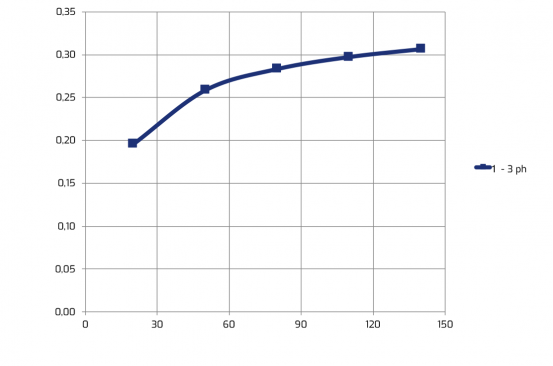

Performance
[kW/K][l/min]
Oil T 80°C
T Amb. 40°C
1 kW = 860 Kcal/h – 1 HP = 0,75 kW

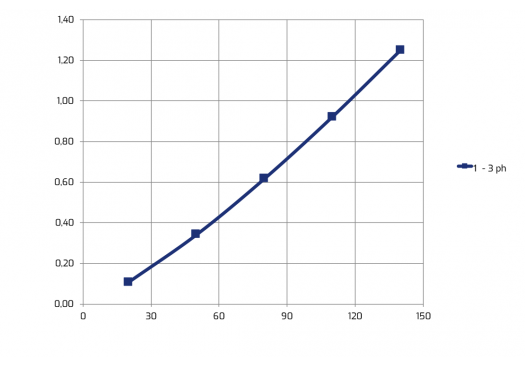

Pressure drop
[bar][l/min]
ISO VG 32 at 40°C
Viscosity - ISO VG 32 Oil| Oil | 22 | 32 | 46 | 68 | 150 |
| Correction factor | 0,8 | 1 | 1,2 | 1,6 | 3 |
Technical data are not binding - The graphs show the central range of heat exchange data
